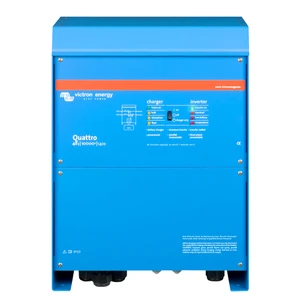

Victron Quattro Inverter/Charger 48V DC - 5000W - Dual 100AMP 120V AC Inputs - 70AMP Battery Charger - Stackable

This inverter charger has two AC inputs and two AC outputs. Its integrated transfer switch will automatically connect to the active source. The output has a UPS functionality and the Quattro can take over the power supply to loads so quickly that computers and other equipment and not interrupted. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation. Being a 48 Volt DC model it is more compact than comparable 12 and 24 volt models.

Quattro Inverter/Charger 48 VDC - 5000W - 200AMP Battery Charger - 50AMP Transfer Switch

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Features:

• Two AC Inputs & two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
• Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Can be connected to two independent AC power supply main output with uninterrupted function Quattro can prevent limited AC power overload. You can run up to 6 Quattros...

• 48 volt DC input
• Pure Sine Wave 120 volt 60 Hz AC output
• 2 x 100 Amp transfer switch
• 70 Amp single output charger
• Continuous AC output power at 25 Deg C is 5000 VA
• Battery temperature sensor included
• Optional remote panel available
• Multiple units can be configured together to provide 240 volt, three phase or other configurations up to a maximum of 50 kVA output
• Dimensions 17.5" x 13" x 9.6'
• Weight 66 Lbs
• Victron part number QUA485021100 or latest revision

SKU: NVN-82642
MPN: QUA485021100
UPC: 8719076024255
